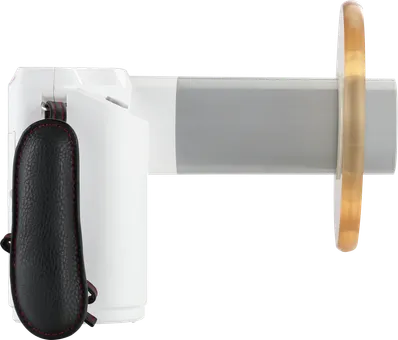

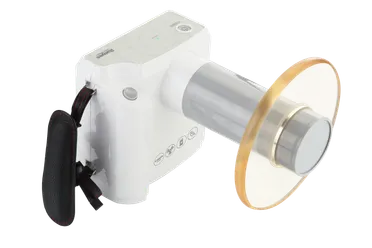

Portable X-Ray Camera
Designed for ultimate flexibility and efficiency. Its compact, hand-held design allows effortless single-hand operation — capture high-quality images anytime, anywhere, without restrictive power cords.
Exposure Time
0.4s
Less Radiation vs. Standard
5–8×
Shots Per Charge
150
Machine Weight
1.7kg
9 Major Features
Everything you need for precise, portable dental imaging — engineered for the modern practice.
High-frequency design — less radiation exposure for both operators and patients compared to ordinary portable X-ray machines, with better image quality.
Dual-mode operation — can be fixed to the chair side for standard imaging, or detached for fully handheld independent operation.
Canon micro-focus tube (Japan) — 0.4mm focal point and 12.5° anode angle for exceptionally clear, detailed images.
Ultra-short exposure time — approximately 0.4 seconds, which is 5–8× shorter than ordinary machines, reducing radiation and minimizing motion blur.
South Korean high-frequency closed-loop circuit components — image quality is maintained even when battery power is low.
Compact and lightweight — single-hand operation with digital display for simple, intuitive use.
150 continuous shots per full charge — reliable all-day clinical performance.
Produced with full quality assurance.
Break Through Tradition
Dual Operation with One Unit
The customized portable X-Ray machine fixing bracket allows the unit to be mounted on the chair side for standard imaging workflows — or quickly detached for fully independent handheld operation. Easy to disassemble and reinstall in seconds.
Chair-side fixed mount for routine imaging
Detachable for handheld independent use
Quick-release bracket — no tools required
Ideal for mobile or multi-operatory practices
Revolutionizing Dental Imaging — Precision, Portability, and Power in Your Hands
Experience the freedom of advanced imaging with our Portable Dental X-Ray — designed for seamless mobility, effortless operation, and unmatched precision. Whether in the clinic or on the go, capture high-quality X-ray images instantly with ease and efficiency.
Technical Specifications
Model RAY98 (P) — full parameter reference
| Parameter | Value |
|---|---|
| Model | RAY98 (P) |
| Tube Voltage | 70kV ±10% |
| Tube Current | 2mA ±20% |
| Input Voltage | 100V–240V |
| Frequency | 50Hz–60Hz |
| X-Tube | Canon (Toshiba) |
| Anode Angle | 12.5° |
| Focus | 0.4mm |
| Exposure Time Range | 0.04s–2.0s |
| Leak Emissivity | 1 meter 0.25mGy/h |
| Machine Weight | 1.7kg |
| Relative Humidity | 30%RH–75%RH |
The RAY98 (P) features a Canon (Toshiba) micro-focus tube imported from Japan, delivering a 0.4mm focal point and 12.5° anode angle for superior image clarity.
Ready to Upgrade Your Imaging?
The Portable X-Ray Camera is available as part of Nextsum's all-inclusive digital practice package. Contact us to schedule a demo or learn about bundled pricing.
